Diamond cutting disc set, 3-piece
| Numer artykułu | WF-972516 |
| Marka | Osborn |
Nie ma jeszcze żadnych recenzji — Twoja może być pierwsza
Podziel się opinią o tym zakupie i pomóż innym klientom dokonać właściwego wyboruNie ma jeszcze pytań
Zadaj pytanie, aby dowiedzieć się więcej o produkcie
0.0
- For clean, chip-free cutting edges
- Good cutting performance under normal use
- Powerful and durable

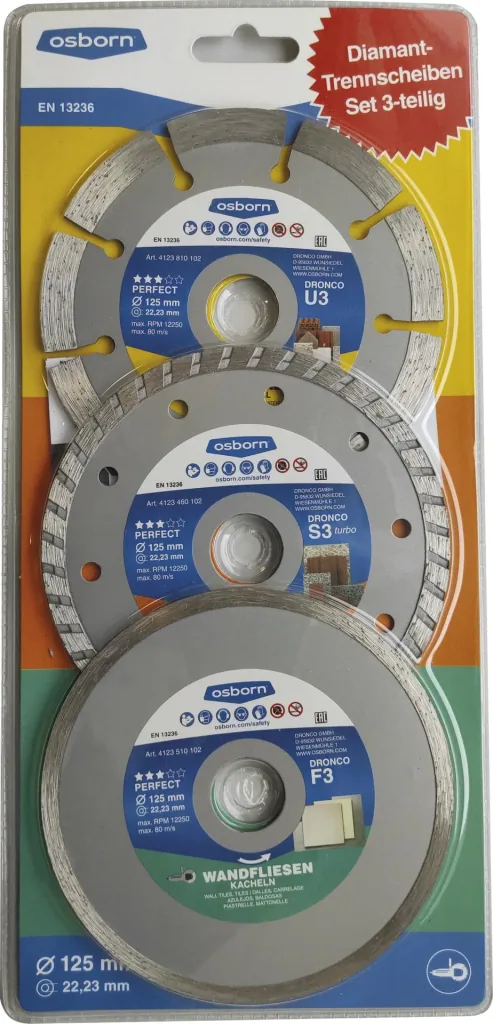

These sintered diamond cutting discs with a closed cutting edge, proven thousands of times over, ensure chip-free cutting edges. The "F3" cutting disc is ideal for cutting wall tiles and tile. It can be used for dry or wet cutting. The "S3 turbo" cutting disc is suitable for cutting concrete slabs, concrete roof tiles, gneiss, granite, terrazzo, and brick. The cutting depth should not exceed 2 cm. The sintered, segmented diamond cutting disc "U3" is suitable for use in construction materials such as concrete, exposed aggregate concrete, and brick.
Technical specifications:
- Maximum RPM: 12250
- Maximum 80 m/s
Dimensions:
Cutting disc "F3": approx. Ø: 125 mm, thickness: 1.9 mm, bore Ø: 22.23 mm
Cutting disc "S3 turbo": approx. Ø: 125 mm, thickness: 2.1 mm, bore Ø: 22.23 mm
Cutting disc "U3": approx. Ø: 125 mm, thickness: 2.0 mm, bore Ø: 22.23 mm
Color: Silver-colored
Material: Tool steel with diamond coating
Scope of delivery
- 1 x diamond cutting disc "F3"
- 1 x diamond cutting disc "S3 turbo"
- 1 x diamond cutting disc "U3"
- 1 x instruction manual
| Packing unit | |
|---|---|
| Packing unit | 3 |
| Disc/blade diameter | |
| Disc/blade diameter | 125 mm |
| Center bore | |
| Center bore | 2 mm |
