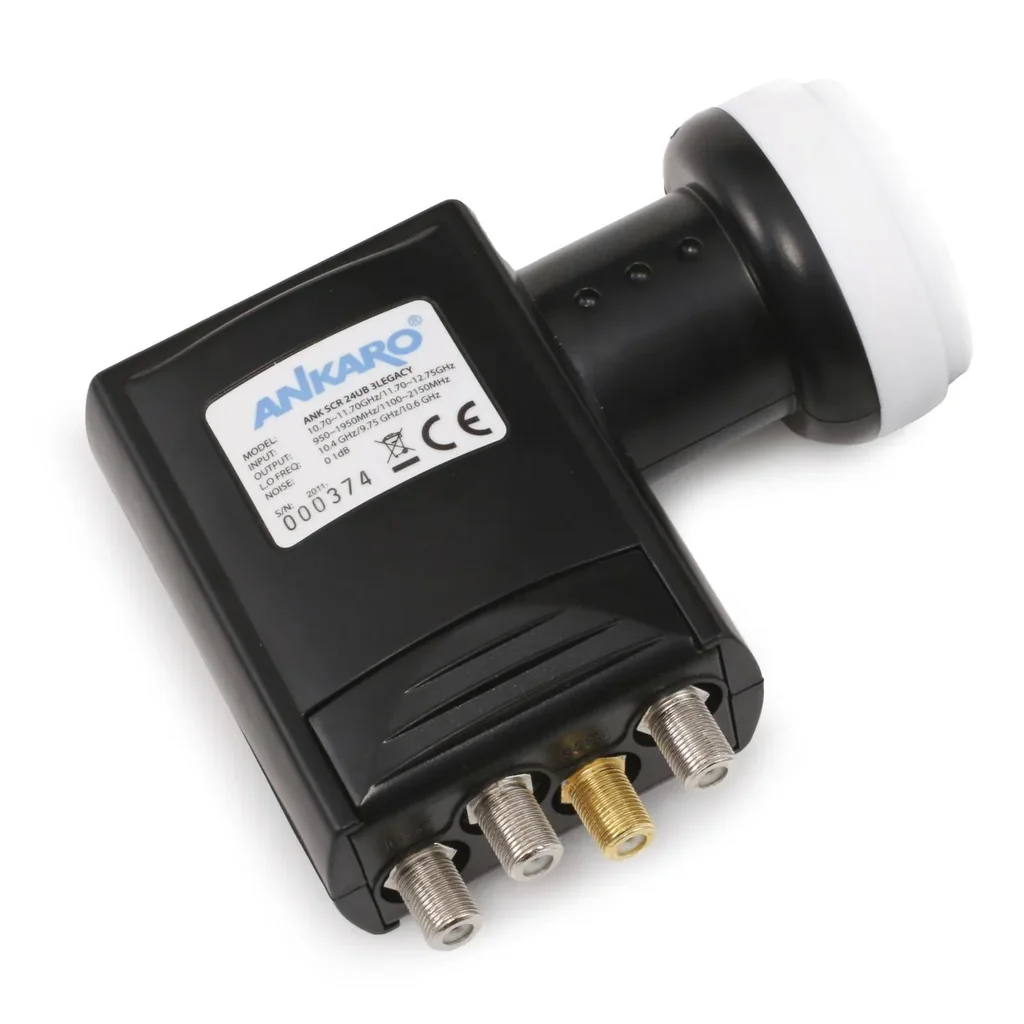

Single cable LNB for 24x Unicable receivers and 3 standard outputs
Informacje o tym produkcie:
- Unicable LNB with 3 legacy direct outputs
- high-quality shielding
- LTE shielding
- extendable weather protection
- 1080p Full HD, 4K (UHD) and 3D capable
| Numer artykułu | WF-994074 |
| Marka | Ankaro |
Nie ma jeszcze żadnych recenzji — Twoja może być pierwsza
Podziel się opinią o tym zakupie i pomóż innym klientom dokonać właściwego wyboruNie ma jeszcze pytań
Zadaj pytanie, aby dowiedzieć się więcej o produkcie
0.0
- Unicable LNB with 3 Legacy Direct Outputs
- High-quality shielding
- LTE shielding
- Extendable weather protection
With this Ankaro ANK SCR 24UB 3 Legacy, you have the option of supplying 24 subscribers via a single coaxial cable (receivers must have the single-cable function) and an additional 3 subscribers directly via the legacy outputs. To control the SCR single-cable solution, the connected satellite receivers must support Satellite Channel Routing (SCR/CSS control commands according to EN50494/EN50607) or the Unicable command set. The converter can be used for various satellites, such as Astra, Hotbird, Eutelsat, Türksat, etc. The LNB provides 24 different converted output frequencies for the single-cable solution. All channels and the entire frequency spectrum of a satellite are available to all subscribers. The LNB has a removable weatherproof cap to protect your connections. The housing is extremely heat and cold resistant.
Technical Specifications:
- SCR outputs: 1 for 24 user bands
- Legacy outputs: 3 for 3 direct connections
- Low input frequency: 10.7...11.7 GHz
- High input frequency: 11.70...12.75 GHz
- LOF frequency (SCR): 10.4 GHz
- Bandwidth: 38 MHz
- Noise figure: <0.1 dB
- Gain: 55 dB (@ -30°C - 70°C)
- Current consumption: 300 mA
- Feed diameter: 40 mm
