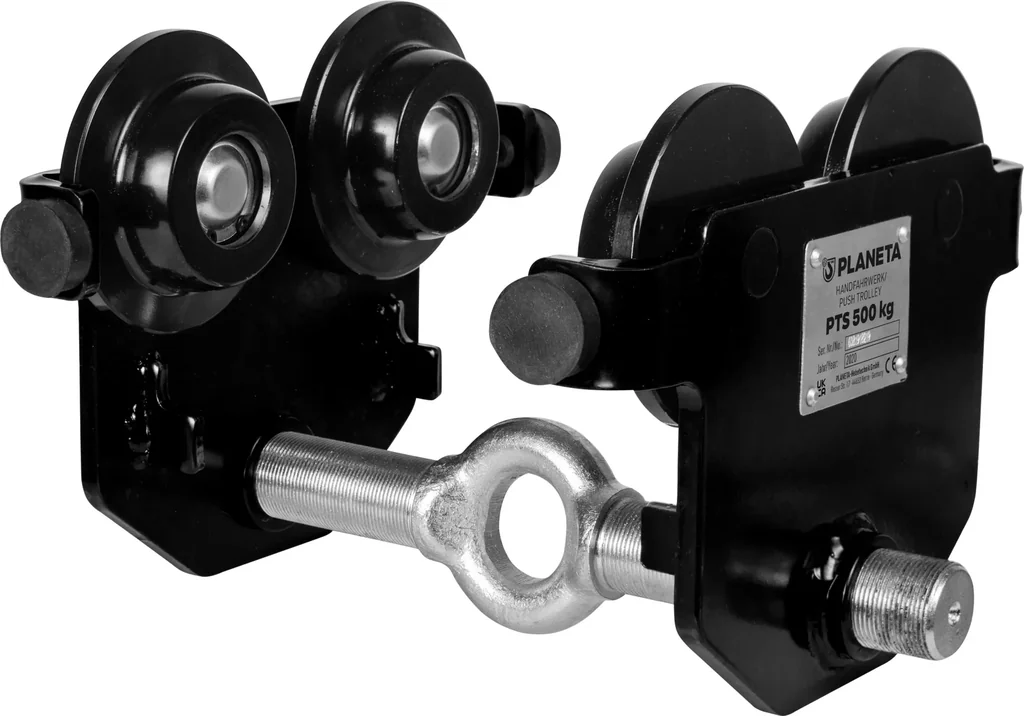

Spindle trolley PTS 0.5 - load capacity 500 kg

• Load capacity from 500 kg to 5,000 kg
• For pulling or moving loads
• The trolleys are manufactured to a high quality and are designed for tough, long-lasting operation
• By turning the threaded spindle, the trolley can be adjusted to many beam widths
• Simple installation by sliding it onto the open beam
• The profiled rollers are suitable for all common beam profiles, allowing this trolley to be used very flexibly
• The standard flange width is up to 220 mm
• Sturdy side plates with safety tabs as wheel break support
• The trolleys have rubber buffers on both sides
• Can be used in ambient temperatures from -20 °C to +60 °C

The trolleys are manufactured to a high quality and are designed for tough, long-lasting operation. The PREMIUM PRO and PULLMASTER-II pulley hoists with the same load capacity can be easily hooked and unhooked using the carrying hook. The trolleys have rubber buffers on both sides! Can be used in ambient temperatures from -20 °C to +60 °C.

Large adjustment range
By turning the threaded spindle, the trolley can be adjusted to many beam widths. The profiled rollers are suitable for all common beam profiles, allowing this trolley to be used very flexibly. The standard flange width is up to 220 mm, but is reduced to 203 mm when the optional lock nuts are used to prevent the threaded spindle from twisting. Once the trolley has been adjusted to the appropriate flange width and a hoist has been attached, the spindle can no longer twist.

Scope of delivery: 1 x PTS spindle trolley - various designs
