Door mounting aid
| Numer artykułu | WF-991157 |
| Marka | Kreg |
Nie ma jeszcze żadnych recenzji — Twoja może być pierwsza
Podziel się opinią o tym zakupie i pomóż innym klientom dokonać właściwego wyboruNie ma jeszcze pytań
Zadaj pytanie, aby dowiedzieć się więcej o produkcie
0.0
- For use with frameless or face-frame cabinets
- Place doors at the desired height
- Precisely position left and right doors for a perfect finish

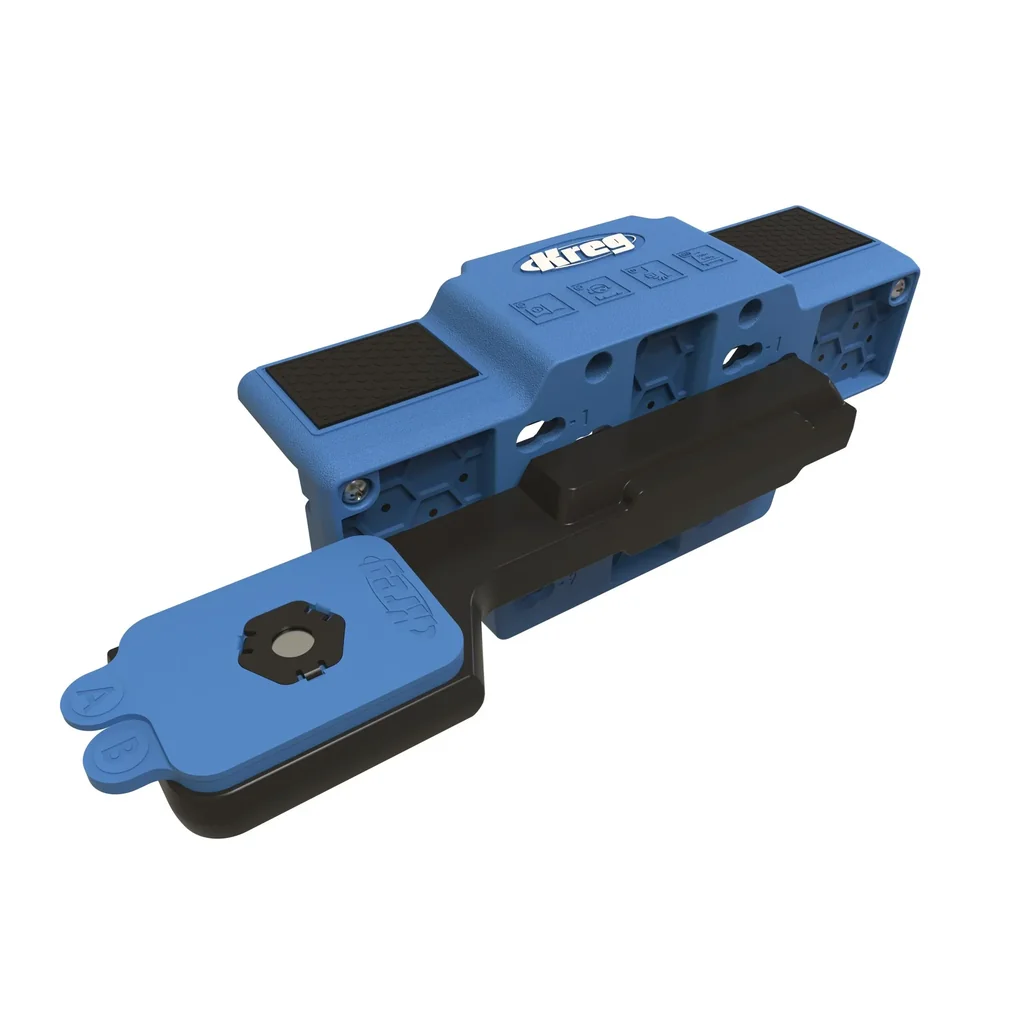

Get an extra helping hand for cabinet door installation with the Kreg Cabinet Door Jig. It makes installing cabinet doors a breeze, whether you're working on face-frame or frameless cabinets. It's suitable for both left- and right-opening doors.
The jig features a support arm that lets you hold the door in place with one hand while you install the hinges on the cabinet with the other. The Cabinet Door Jig also allows you to precisely position your cabinet doors. Adjust the support arm to one of nine different positions to place your doors exactly where you want them. There's one setting for inset doors and eight more in 6.35 mm increments, allowing you to support doors that extend up to 50 mm above the cabinet front.
The cabinet door mounting jig comes with two micro shims for even more fine-tuning. Use one shim to move the door up 1.6 mm or 3 mm, or combine both shims for 5 mm of adjustability.
Scope of delivery
- 1 x Cabinet door mounting jig
- 1 x Support arm
- 1 x 1.6 mm magnetic washer
- 1 x 3.2 mm magnetic washer
