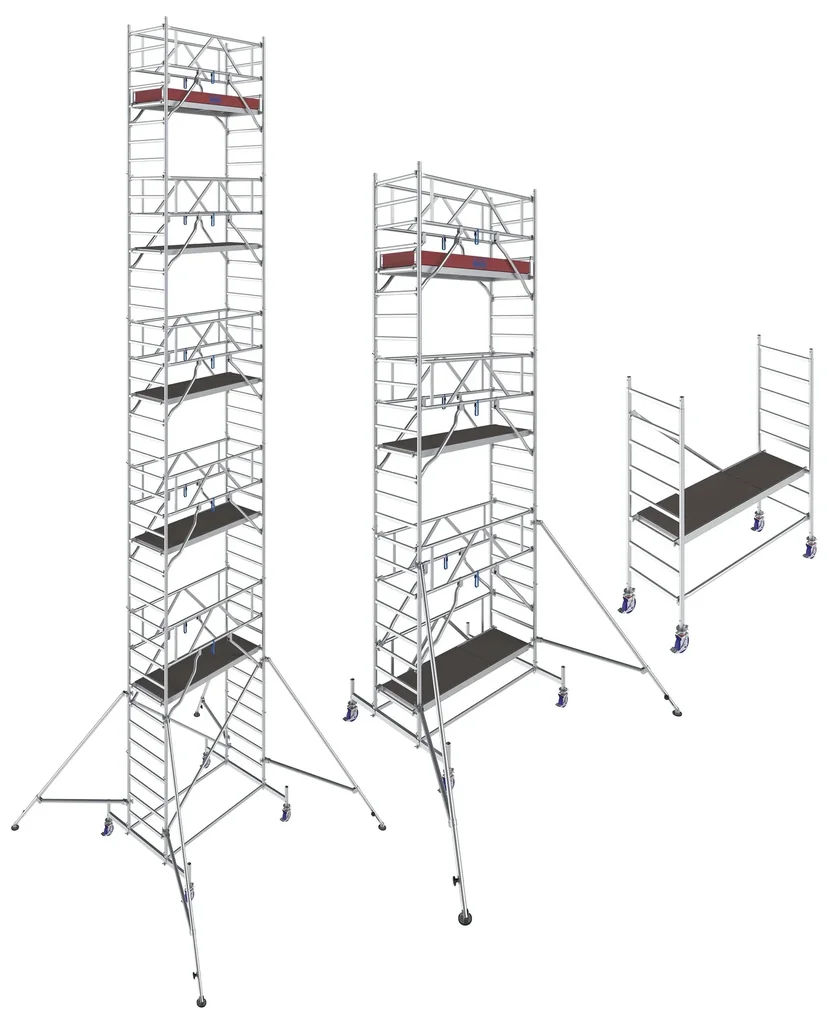

STABILO mobile scaffolding series 10, bay length 2 m, working height approx. 7.40 m

• Load capacity 200 kg/m² (scaffolding group 3) according to DIN EN 1004-1
• Working height up to 14.40 m
• Secure assembly is ensured by attaching the GuardMatic system railing frame before attaching the next higher platform. A complete railing, providing fall protection, is provided when climbing through the platform.
• The integration of the diagonal braces into the GuardMatic system ensures simple and safe assembly. The railing frame can be folded up to save space for transport or storage.
• The 6-point fixing of the GuardMatic system ensures maximum stability at height. The unique, self-locking KRAUSE locking system with a positive connection enables simple, quick, and safe assembly and disassembly.
• The innovative shape of the diagonal braces offers maximum usable space on the decking platform and does not interfere in any way.
• Maximum decking platform spacing of 2 m for comfortable and safe assembly without tools.
• Sturdy steel travel crossbeams ensure secure footing (from working height 4.40 m).
• Height-adjustable casters (Ø 150 mm) with the integrated spindle thread ensure use on uneven terrain (continuously adjustable range: 220 - 335 mm).
• Easy-to-assemble outriggers with continuously telescopic swivel bases (adjustment range up to 230 mm) ensure secure support and stability at great heights on any surface from a working height of 7.40 m.
• Field lengths: 2.00 m
• Scaffold bay width: 0.75 m

The professional aluminum mobile scaffold for quick and safe assembly.
