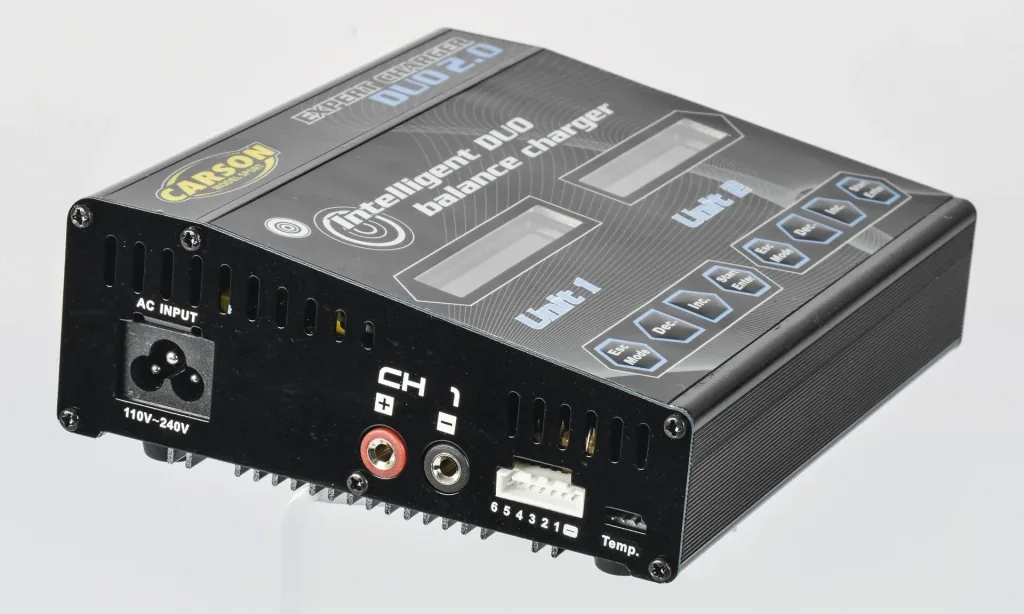

Expert Charger Duo 2.0

The CARSON Expert Charger DUO 2.0 is an innovative computer charger with numerous professional features. It charges all battery types from 2x 1 V to 22.2 V with 2x 0.1 to 6 A via 2 separately controllable charging units. This handy charger is extremely powerful and suitable for conventional NiMH/lead batteries as well as modern lithium batteries (Li-Ion/LiPo/LiFe). It also functions as a precise battery charge level meter. A highlight is the memory function, which allows up to ten battery (charging) data to be conveniently stored and recalled. The clear, blue-lit LCD display provides information on battery voltage, current charging current, charging time, and charged capacity. The balancer ensures that all cells in LiXX packs have the same final charging voltage. The Expert Charger DUO 2.0 is extensively equipped and very user-friendly and can be operated on the go with 11-18 V direct current.

Technical details

1. Very easy to use
2. Large blue illuminated LC display
3. Li-Po/ LiFe 1-6 cells
4. NiMH/ NiCD 1-15 cells
5. For all lead batteries 2-24 V
6. Incl. 2x balancer adapter for XHP system
7. Connection of a temperature sensor possible
8. Fast charging capable max. 2x6 A
9. Discharge mode up to 2.0 A
10.Two separately programmable charging units
11.11-8 V DC power supply possible for mobile operation

Technical data

• Charger input voltage: 100-240 V, 50/60 Hz (AC) / 11-18 V (DC)
• Charging current: 2x 0.1 - 6 A maximum 50 W (2x)
• Discharge current: 2x 0.1 - 2 A maximum 5 W (2x)
• Battery types: 1-6 cells Li-xx (7.4-22.2 V), 1-15 cells NiMH/NiCd
  (1.2-18 V), lead battery (2-24 V), integrated balancer + XHP adapter,
  Delta-Peak Shutdown
• Weight: 930 g
• Size: 177 x 150 x 55 mm

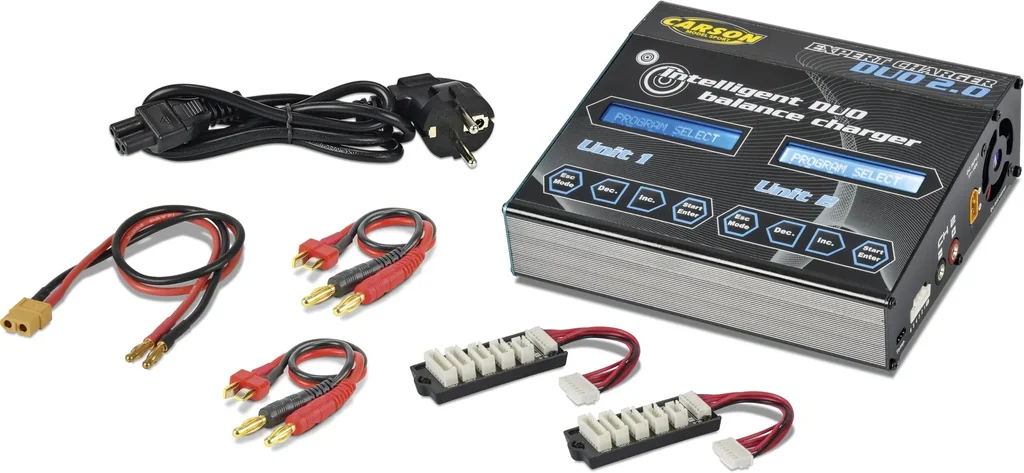

Scope of delivery

•
  Power supply cable
• 2x balancer adapter XHP
• 2x charging cable T-plug
• DC connection cable
• Instructions

Caution! Not suitable for children under 14 years.
