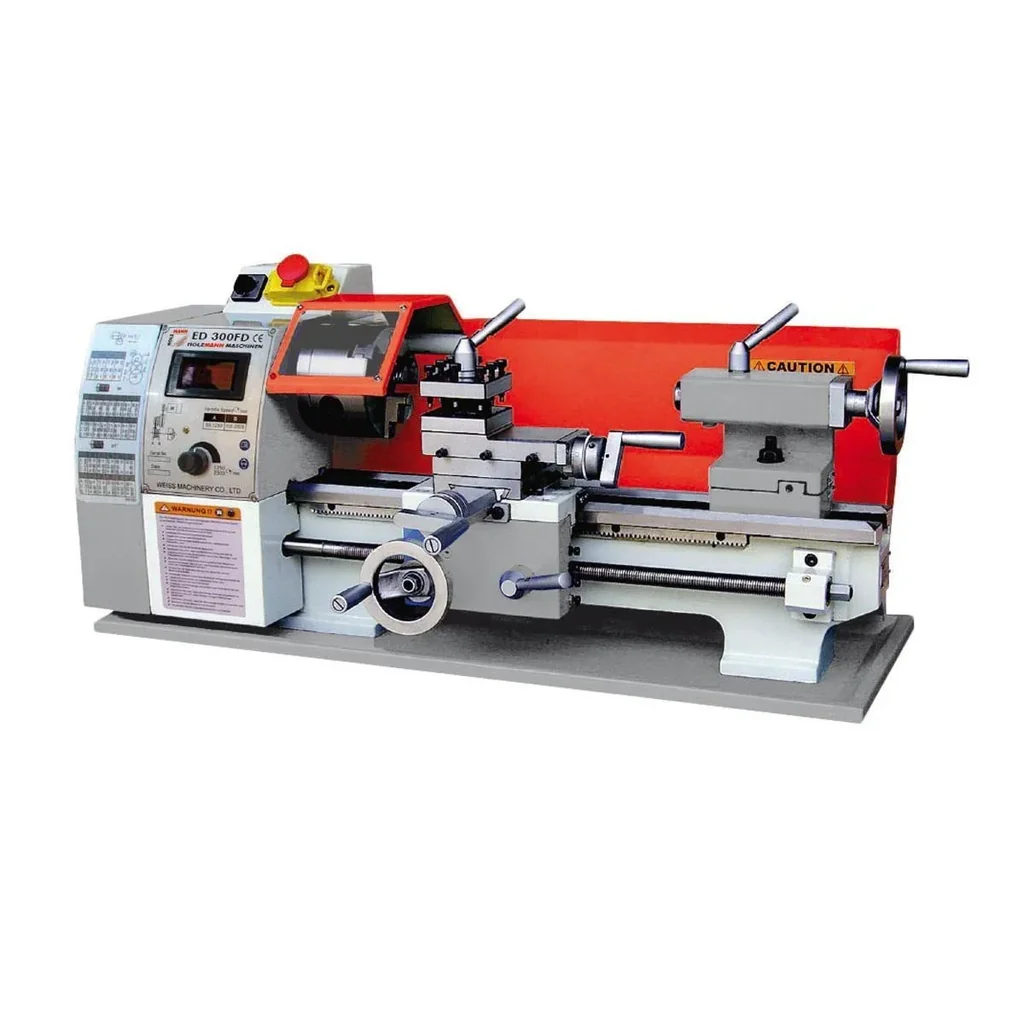

Bench lathe ED300FD 230V

• With lead screw for thread cutting or automatic longitudinal turning
• V-shaped bed guides induction hardened and precision ground
• Hardened main spindle mounted on adjustable, precise tapered roller bearings
• High concentricity of the main spindle
• Infinitely variable speed, conveniently read via digital speed display
• Change gears supplied as standard for a large thread cutting range
• V-shaped guides of the slide guide are adjustable for zero play
• Powerful, maintenance-free motor with undervoltage release
• Extremely powerful, largely constant torque curve
• Right-left rotation can be switched on the control panel
• Tailstock can be moved for taper turning
• With 4 adjusting screws on the top slide

Scope of delivery: 3-jaw chuck Ø 100mm, quadruple tool holder, fixed live center MK3, fixed live center MK2, chip back plate, chip tray, change gear set, operating tools

Technical specifications:

• Motor power: S6 in W 630
• Motor power: S1 in W 450
• Voltage: 230V
• Longitudinal slide travel: 276 mm
• Spindle bore: 21 mm
• Spindle mount: MK3/MT3
• Tailstock taper: MK2/MT2
• Maximum swing diameter of cross slide: 110 mm
• Spindle speed: 50-2500 min-1
• Metric thread: (18 S) 0.5-3 mm/r
• Thread: 8 - 44 mm
• Quill travel: 60 mm
• Cross slide travel: 75 mm
• Top slide travel: 55 mm
• Center distance: 300 mm
• Maximum swing diameter: 180 mm

Dimensions: Installation dimensions: 740 x 390 x 370 mm

Bed width: 100 mm

Weight 60 kg

Scope of delivery:

• 3-jaw chuck Ø 100 mm
• Quadruple tool holder
• Fixed live center MK3
• Fixed live center MK2
• Chip back wall
• Chip tray
• Change gear set
• Operating tool
