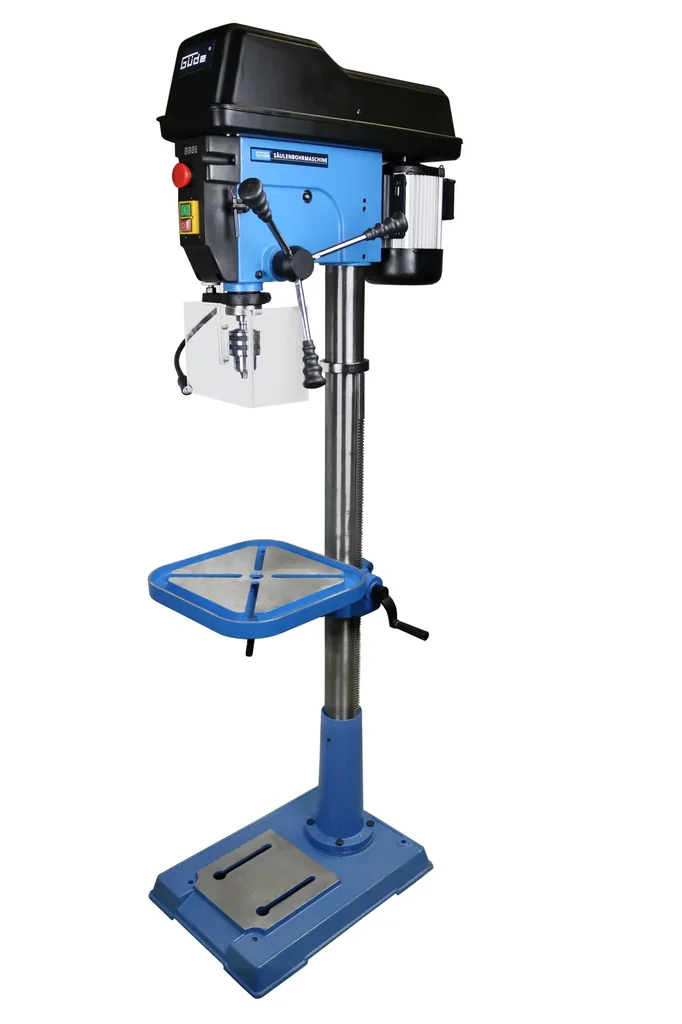

Wiertarka kolumnowa GSB 25/1100 VARIO

• V-belt drive with continuously variable speed adjustment
• Digital speed display
• V-belt tensioning system
• Ball-bearing drill spindle
• High spindle concentricity (<0.02 mm)

The GSB 25/1100 VARIO pillar drill with a motor power of 1100 watts has additional features

• Keyed drill chuck 1-16 mm, spindle mount
• MK2
• Drill chuck cone B16
• Drill table size is 355 x 355 mm
• Height adjustable as well as tiltable by +/- 45° and pivotable by 360°
• Drill table is Equipped with collecting channels for coolant
•  Has an adjustable drilling depth stop

The maximum distance from the drill chuck to the drilling table is 650 mm and to the base 1160 mm.                                                     Furthermore, the pillar drill has an emergency stop switch, a foldable chip guard with a micro switch,                                       On/off switch with zero-voltage release and a flexible LED work light.

Technical Data

• • Mains voltage: 230 Volt
• • Frequency: 50 Hz
• • Protection class: I
• • Motor power P1: 1100 Watt
• • Spindle stroke: 150 mm
• • Spindle speed: 500 - 2200 min-1
• • Number of steps: Continuously variable
• • Throat: 220 mm
• • Maximum drill chuck clamping width: 16 mm
• • Minimum drill chuck clamping width: 1 mm
• • Drill chuck taper: 16 B
• • Spindle mount: 2 MK
• • Drill diameter for steel: 25 mm
• • Noise level LWA: 73.1 dB

Weight: 91 kg

Dimensions (L x W x H): 720 x 4450 x 1700 mm

• • Table width: 355 mm • Table depth: 355 mm
• • Column diameter: 80 mm
• • Connection cable length: 200 cm
• • Base: 580 x 420 mm (with slots for
• vise attachment)

Scope of delivery:

• 1 x GSB 25/1100 pillar drill VARIO
