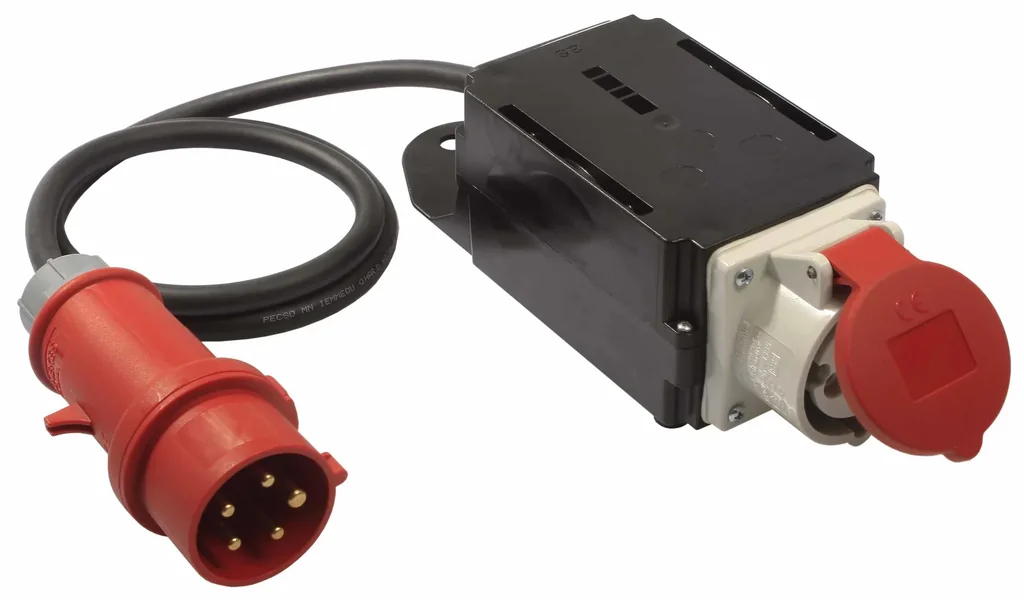

Inrush current limiter Mixo Start 1.5m, 400V, 16A, max. 11000W
| Numer artykułu | WF-936871 |
| Marka | AS Schwabe |
Nie ma jeszcze żadnych recenzji — Twoja może być pierwsza
Podziel się opinią o tym zakupie i pomóż innym klientom dokonać właściwego wyboruNie ma jeszcze pytań
Zadaj pytanie, aby dowiedzieć się więcej o produkcie
0.0
When switching on welding machines, shredders, angle grinders, etc., the fuse often blows. The reason for this is the high inrush currents, which are present for a short time but reach many times the rated current of the circuit breaker.
The inrush current damping limits the inrush current to a value that does not cause the fuse to trip.
Caution
If several devices are connected simultaneously, the inrush current damping has no function.
Areas of Application
• Angle grinders
• High-pressure cleaners
• Welding machines
• Circular saws
• Shredders
• And similar devices with inductive components
MIXO inrush current limiter 400 V / 16 A
• CEE plug and CEE coupling with safety hinged cover
• Max. load capacity: 11,000 W
• Input:
1.5 m H07RN-F 5G1.5 with CEE plug 400 V, 16 A, 5-pin
• Output:
1 CEE socket 400 V, 16 A, 5-pin
Technical data
• Black
• Voltage U = 400 V AC
• 50-60 Hz Suitable for 16 A automatic circuit breakers with trip characteristics C and E Max. switching frequency per minute: 1
• IP44
