Cockpit camera + digital rear view camera

Product Description WESTFALIA Rear View Camera System & Dashcam 2 in 1

• Integrated dashboard camera to record the traffic in front of the vehicle
• Increases safety when reversing
• With parking aid lines
• Ideal for retrofitting to cars, motorhomes, or trailers
• Digital, wireless radio signal
• For 12/24 volt vehicles

The rear view camera switches on automatically as soon as you engage reverse gear. See what's happening behind your car, caravan, trailer, or minivan. The parking aid lines assist you during parking.

With the built-in dashcam, you can monitor your vehicle and the traffic via video (max. resolution HD) and photo recordings.

Photos and videos can be saved on a max. 32 GB memory card (Class4 TF/MicroSD card or better - not included).

Using the USB 2.0 port on the device, the saved files can also be read out on a PC.

Video files are segmented to enable continuous recordings (loop recordings).

A timestamp can be saved in the recordings for reference purposes. Recording the sound is optional.

In the event of an accident, the G-sensor can detect the impact impulse and the current video file can be automatically saved and write protection activated, or in the event of a parking accident, recording can start automatically.

The built-in Li-Po battery ensures that videos are saved even if the power supply is interrupted.

If a video signal is received from the rear view camera (after engaging reverse gear), the receiver display switches automatically.

Camera / Transmitter

• Interference-free, reliable digital 2.4 GHz radio transmission
• Range up to 25 m
• Automatic activation by engaging reverse gear (power supply via the Reversing light)
• Weatherproof CMOS camera with a wide angle of detection and 6 infrared LEDs for the best visibility day and night
• Quick and easy installation using the included license plate mounting plate

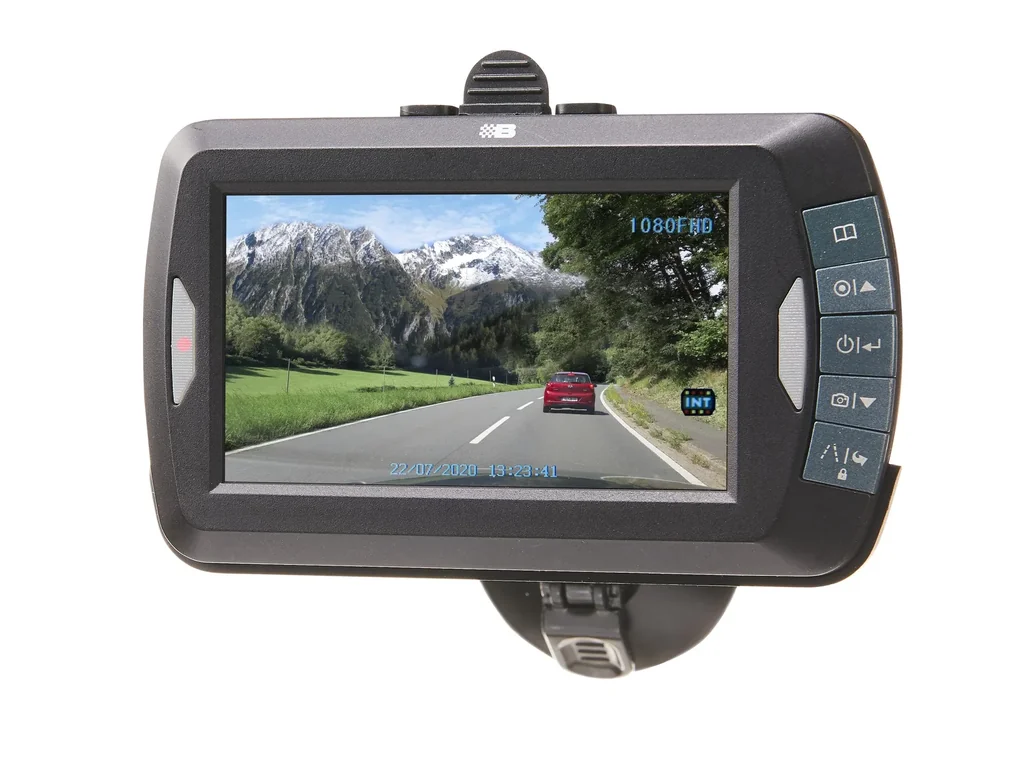

Interior monitor with dashcam

• 4.3" color LCD monitor with superimposed guide lines
• Resolution: 480 x 272 pixels
• Viewing angle: 90°
• Attachment to the windshield with a suction cup
• Connection to the 12 volt or 24 volt vehicle electrical system via the Cigarette lighter

Dashcam

• HD video resolution up to 1280 x 720
• Photo recordings are possible
• Optional audio recording
• Recording to TF/microSD memory card (max. 32GB, not included)
• Continuous recording possible
• Adjustable G-sensor for automatic recording and automatic file protection when an impact is detected

Technical specifications

Camera

• Operating voltage 10-30 Volt DC
• Current consumption during operation ≤ 220mA @12V; ≤ 110mA @24V
• Image sensor CMOS
• Protection class IP 65
• Camera resolution 640x480
• Lens optics 1.7mm / F2.0
• Transmission frequency 2.4 GHz (ISM band)
• Transmission distance (free) 25 m

LCD monitor / receiver

• Operating voltage 10-30 Volt DC
• Current consumption (standby) ≤ 5mA (with fully charged battery)
• Current consumption (switched off) <80 µA (from built-in battery)
• Current consumption (operation) ≤ 350 mA at 12 Volt; ≤170mA at 24 Volts
• Battery: Li-Ion 3.7 Volts, 250 mAh, 925 mWh
• LCD screen size: 10.9cm / 4.3 inch TFT
• LCD screen resolution: 480 x 272
• Connections: USB 2.0 support; Micro-SD card

Scope of delivery

• 1 x monitor with dashcam and mounting arm
• 1 x camera with mounting plate
• 1 x power cable for the monitor
• 1 x USB cable for charging the camera
