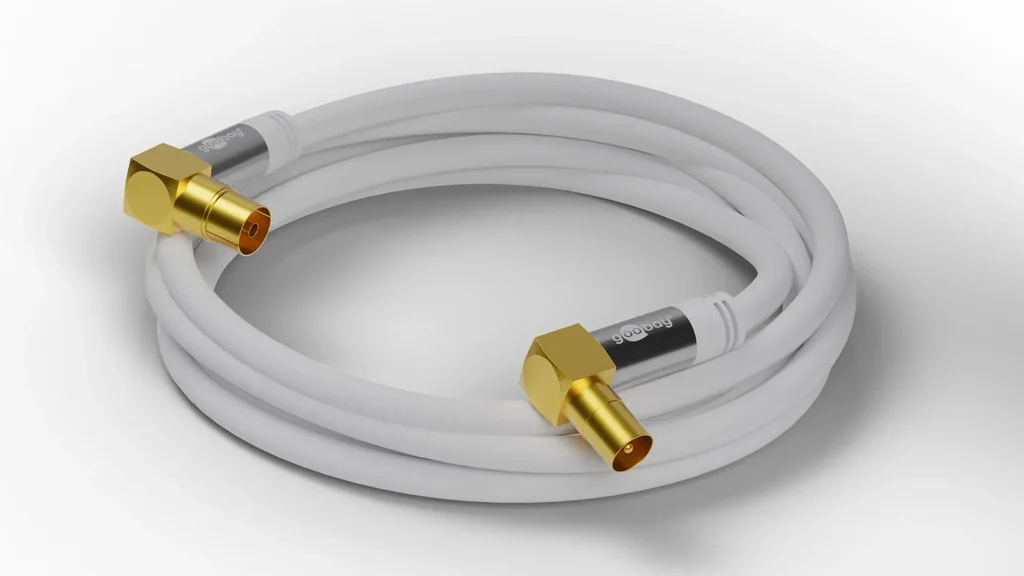

TV antenna cable 135 dB, 4x shielded, 2 m, white - gold-plated, coaxial socket 90° > coaxial plug 90° (70417)

Ideal for high-resolution transmissions (HD-TV, Full HD, Ultra HD (UHD / 4K and higher) with digital signals such as DVB-T and DVB-T2, radio (FM/DAB / DAB+) as well as cable TV DVB-C and DVB-C2 (analog/digital SD/digital HD). Reliable connection between the wall outlet and receiving device such as a television/receiver (Sky receiver) and radio.

• Inner conductor made of high-purity OFC solid copper for optimal conduction and transmission properties for virtually lossless signal transmission.

• 4-fold, high-density shielding material (made of high-density 2-fold braid and 2-fold foil) with 135 dB shielding efficiency.

• Perfect ratio between shielding and flexibility – ideal shielding for perfect reception and interference-free transmission.

• Solid solid metal connectors with gold-plated contacts – perfect the Durability, stability and a precise fit

• Optimized kink protection and flexible cable sheathing protects against exceeding the maximum bending radius

Connectors

• Connector, type: 90° coaxial socket

• Connector, housing material: aluminum

• Connector, contact material: gold-plated

• Connector 2, type: 90° coaxial plug

• Connector, shielding: yes

Cable

• Cable type: coaxial cable

• Dielectric diameter: 5 mm

• Cable sheath diameter (approx.): 8 mm

• Inner conductor, material: CU (copper)

• Inner conductor, wire diameter: 1.02 mm

• Cable sheath, material: PVC

• Number of shields: 4 x

• Type 1, shielding: foil (aluminum)

• Type 2, shielding: braid (aluminum) 128x

• Type 3, shielding: foil (aluminum)

• Type 4, shielding: braid (aluminum) 128x

• Kink protection: both sides

• Shielding efficiency: 135 dB

Signal transmission

• Characteristic impedance: 75 Ω

General

• Color: White
