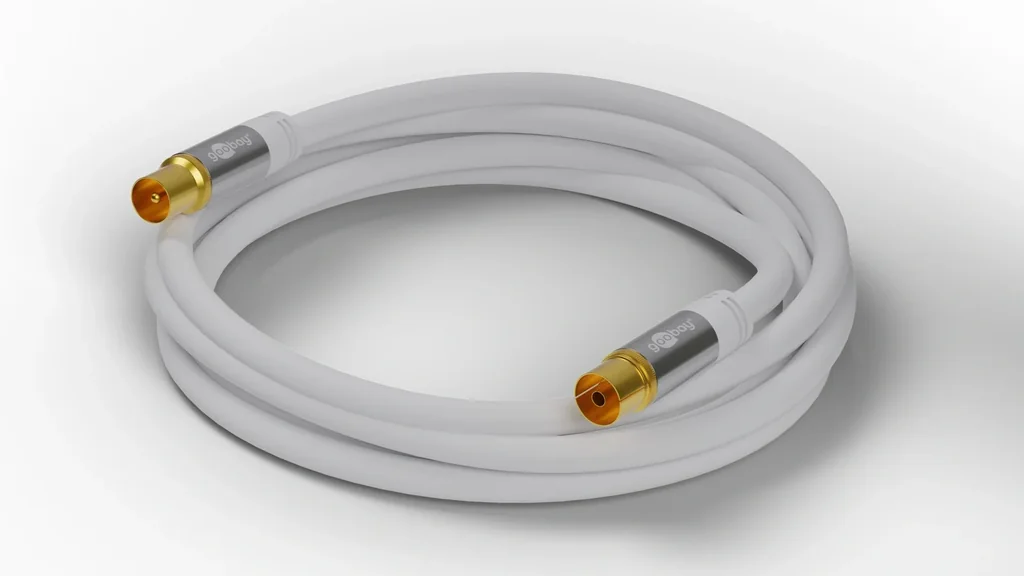

TV antenna cable 135 dB, 4x shielded, 3 m, white - gold-plated, coaxial socket > coaxial plug (70318)
Gwarantowana Bezpieczna płatność
| Numer artykułu | WF-928723 |
| Marka | Goobay |
Recenzje
Nie ma jeszcze żadnych recenzji — Twoja może być pierwsza
Podziel się opinią o tym zakupie i pomóż innym klientom dokonać właściwego wyboru
Pytania
Nie ma jeszcze pytań
Zadaj pytanie, aby dowiedzieć się więcej o produkcie
0.0
0 reviews
- Inner conductor made of high-purity OFC solid copper for optimal conduction and transmission properties for virtually lossless signal transmission
- 4-fold, high-density shielding material (made of high-density 2-fold braid and 2-fold foil) with 135 dB shielding efficiency
- Perfect ratio between shielding and flexibility - ideal shielding for perfect reception and interference-free transmission
- Solid solid metal connectors with gold-plated contacts - perfect durability, stability, and a precise fit
- Optimized kink protection and flexible cable sheathing protects against exceeding the maximum bending radius
Ideal for high-resolution transmissions (HD-TV, Full HD, Ultra HD (UHD / 4K and higher) with digital signals such as DVB-T and DVB-T2, radio (FM/DAB / DAB+) as well as cable TV DVB-C and DVB-C2 (analog/digital SD/digital HD). Reliable connection between the connection socket and the receiving device such as a television/receiver (Sky receiver) and radio.
Connections
- Connector, type: coaxial socket
- Connector, housing material: aluminum
- Connector, contact material: gold-plated
- Connector 2, type: coaxial plug
- Connector, shielding: yes
Cable
- Cable type: coaxial cable
- Diameter: dielectric 5 mm
- Diameter: cable sheath (approx.) 8 mm
- Inner conductor, material: CU (copper)
- Inner conductor, core diameter: 1.02 mm
- Cable sheath, material: PVC
- Number of shields: 4 x
- Type 1, Shielding: Foil (Aluminum)
- Type 2, Shielding: Braid (Aluminum) 128x
- Type 3, Shielding: Foil (Aluminum)
- Type 4, Shielding: Braid (Aluminum) 128x
- Kink protection: both sides
- Shielding efficiency: 135 dB
Signal transmission
- Characteristic impedance: 75 Ω
General
- Color: White
| Shielding efficiency | |
|---|---|
| Shielding efficiency | 135 dB |
| Number of shields | |
| Number of shields | 4 |
| Quantity | |
| Quantity | 1 |
| Colors | |
| Colors | white |
| Inner conductor diameter | |
| Inner conductor diameter | 1.02 mm |
| Connection type | |
| Connection type | coaxial plug |
| Connection type | coaxial socket |
| Cable length | |
| Cable length | 3 m |
| Anti-kink protection | |
| Anti-kink protection | yes |
