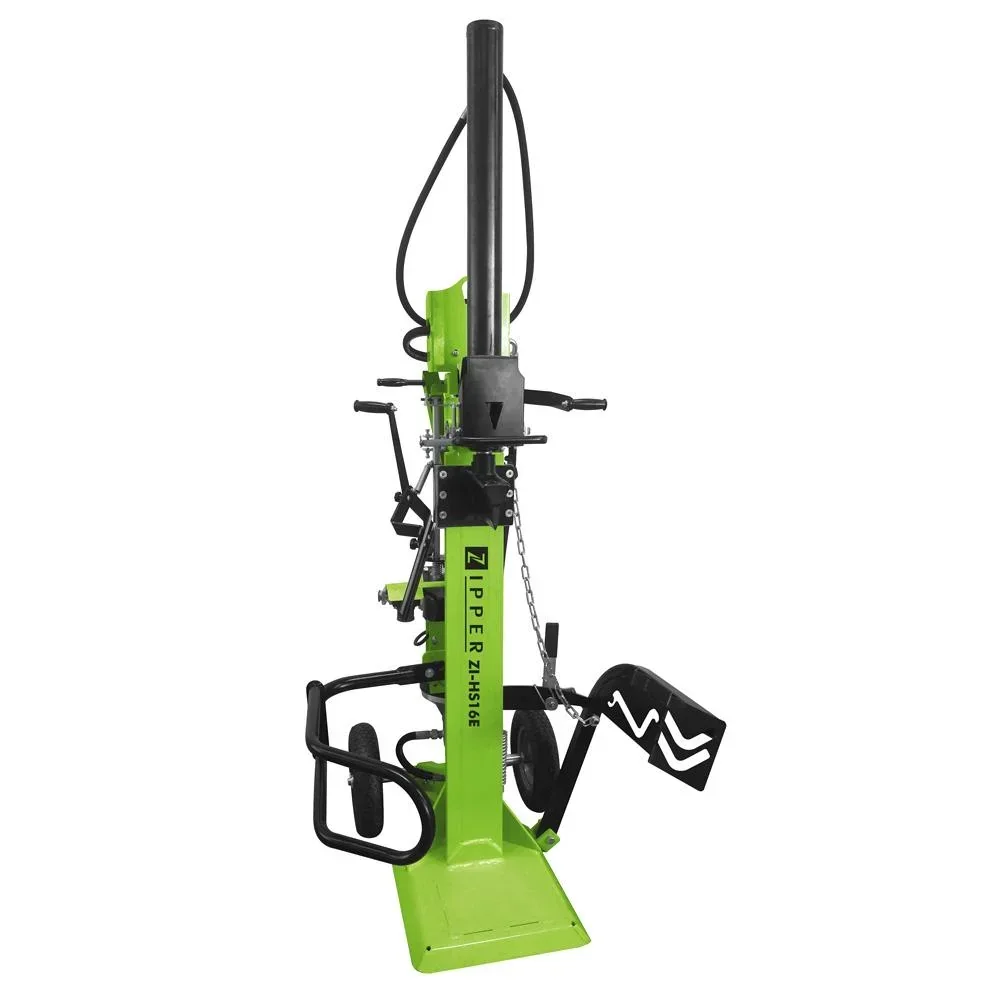

Log splitter 400 V - ZI-HS16E
| Numer artykułu | WF-923339 |
| Marka | Zipper |
Nie ma jeszcze żadnych recenzji — Twoja może być pierwsza
Podziel się opinią o tym zakupie i pomóż innym klientom dokonać właściwego wyboruNie ma jeszcze pytań
Zadaj pytanie, aby dowiedzieć się więcej o produkcie
0.0
• Vertical design for splitting short and meter-long wood - 1100 mm
• Forward motion has two speed levels (slow and fast)
• Operation via integrated electric motor
• Stable, torsion-resistant steel construction
• Fast operation thanks to continuously adjustable splitting stroke
• State-of-the-art safety operation according to the new 2017 standard
• Base plate for depth insertion
• Convenient transport thanks to trolley
Technical data
• Motor power S6 in W: 4500 (40%)
• Voltage: 400V 50Hz
• Splitting force in t: 16
• Max. splitting stroke in mm: 948
• Splitting material diameter in mm: 300
• Splitting length (without accessories) in mm: 1100
• Hydraulic oil capacity in l: 18
• Hydraulic stroke in MPa: 24.89
• Forward speed in cm/s: 4.6 / 14.2
• Return speed in cm/s: 6.4
• Sound pressure level in dB(A): <80
• Vibration handle in m/s2: <2.5
Net weight in kg: 258
Installation dimensions in mm: 1050x1550x2500
| Output power | |
|---|---|
| Output power | 4,500 W |
| Colors | |
| Colors | light green |
| Voltage | |
| Voltage | 400 V |
| Return speed | |
| Return speed | 6.4 cm/s |
| Forward speed | |
| Forward speed | 14.2 cm/s |
| Drive | |
| Drive | 380 V motor |
| Splitting stroke adjustment | |
| Splitting stroke adjustment | 94.8 cm |
| Maximum splitting length | |
| Maximum splitting length | 110 cm |
| Splitting force (tons) | |
| Splitting force (tons) | 16 t |
| Maximum splitting diameter | |
| Maximum splitting diameter | 30 cm |
| External dimensions | |
| External dimensions | 1050 x 1550 x 2500 mm x mm x mm |
| Standing setup | |
| Standing setup | true |
| Weight | |
| Weight | 258 |
