Float valve Jobe Topaz TPV32 - 1 1/4"
| Numer artykułu | WF-914894 |
| Marka | TOPAZ |
Nie ma jeszcze żadnych recenzji — Twoja może być pierwsza
Podziel się opinią o tym zakupie i pomóż innym klientom dokonać właściwego wyboruNie ma jeszcze pytań
Zadaj pytanie, aby dowiedzieć się więcej o produkcie
0.0
Ensures the water level in:
- Animal drinking troughs
- Water storage tanks
- Cisterns
- High-pressure cleaning systems
- Irrigation systems

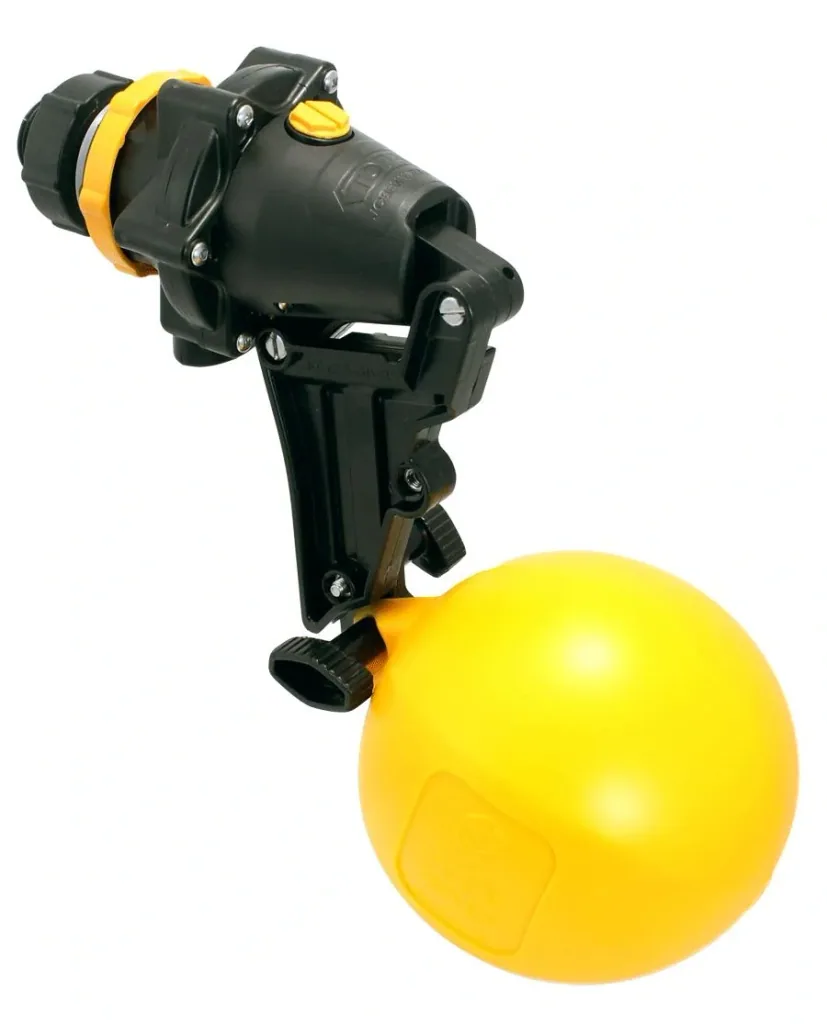

The TOPAZ float valve provides a high flow of up to 200 l/min, at a pressure of 0.3 - 7 bar. It can be mounted above or below the water surface. The float operates a small pilot valve, which in turn switches the main valve. Topaz drinking valves are a good choice when a compact, robust, and rust-proof design is required for high flow rates.
The valves can be mounted both horizontally and vertically. All components are made of rust-proof materials. The valve closes slowly to minimize water backflow, and the valve switch locks in the OFF position. The float position can be easily adjusted without tools. Thanks to its diaphragm operating principle, the TOPAZ allows flow rates of approximately 200 l/min. The detach function allows TOPAZ valves to be removed for maintenance without tools and without shutting off the water supply.
The maximum operating temperature is 60°C.
| Connection thread | |
|---|---|
| Connection thread | 1 1/4 inch |
| Operating pressure | |
| Operating pressure | 7 bar |
| Weight | |
| Weight | 1.005 |
| External dimensions | |
| External dimensions | 36 x 23 x 12.5 cm |
