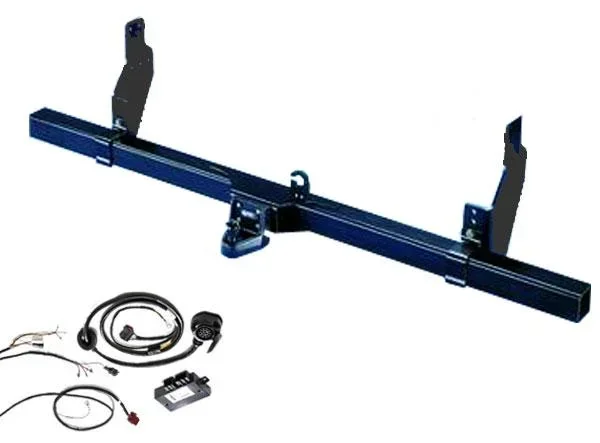

Trailer coupling kit TOYOTA LAND CRUISER (_J15_) from build 08/09
| Numer artykułu | WF-909508 |
| Marka | Westfalia-Automotive |
Nie ma jeszcze żadnych recenzji — Twoja może być pierwsza
Podziel się opinią o tym zakupie i pomóż innym klientom dokonać właściwego wyboruNie ma jeszcze pytań
Zadaj pytanie, aby dowiedzieć się więcej o produkcie
0.0
With this tow bar and the matching electrical kit from WESTFALIA-Automotive, you receive a branded product of high precision and quality.
Each tow bar can be installed on your own vehicle using the enclosed installation instructions.
Thanks to the EC approval, which all tow bar types from WESTFALIA-Automotive have, there is no registration requirement and therefore no additional costs for TÜV inspection are incurred.
Each tow bar is protected against weather and environmental influences using a special dipping process, cathodic dip painting.
The scope of delivery of the tow bar includes all screws, cables, plugs, etc. necessary for installation, as well as the installation instructions.
Special features:
J 15 incl. Mounting plates: 329062600001
Please order the bumper cutout cap from your Toyota dealer.
| Towbar system | |
|---|---|
| Towbar system | KIT tow bar with 4-hole ball plate (F40) |
| Cutout | |
| Cutout | visible cutout |
| Permanent positive | |
| Permanent positive | included |
| Number of poles | |
| Number of poles | 13 |
| Towing capacity | |
| Towing capacity | 3,500 |
| Vehicle model | |
| Vehicle model | LAND CRUISER PRADO (_J15_) |
| Electrical kit type | |
| Electrical kit type | vehicle-specific |
| Towbar weight | |
| Towbar weight | 18 kg |
| Installation time | |
| Installation time | 0 min |
| Make | |
| Make | Toyota |
| Flasher monitoring | |
| Flasher monitoring | A |
| D-value | |
| D-value | 15.9 kN |
| Charging cable | |
| Charging cable | optional |
| Towbar ECE No. | |
| Towbar ECE No. | 1368 |
| Electrical kit installation time | |
| Electrical kit installation time | 75 min |
| Coding/activation | |
| Coding/activation | not necessary |
| EPH deactivation | |
| EPH deactivation | optional pre-installation |
| Year of manufacture | |
| Year of manufacture | 08/2009 |
| Power connection | |
| Power connection | rear |
| Drawbar load | |
| Drawbar load | 130 kg |
