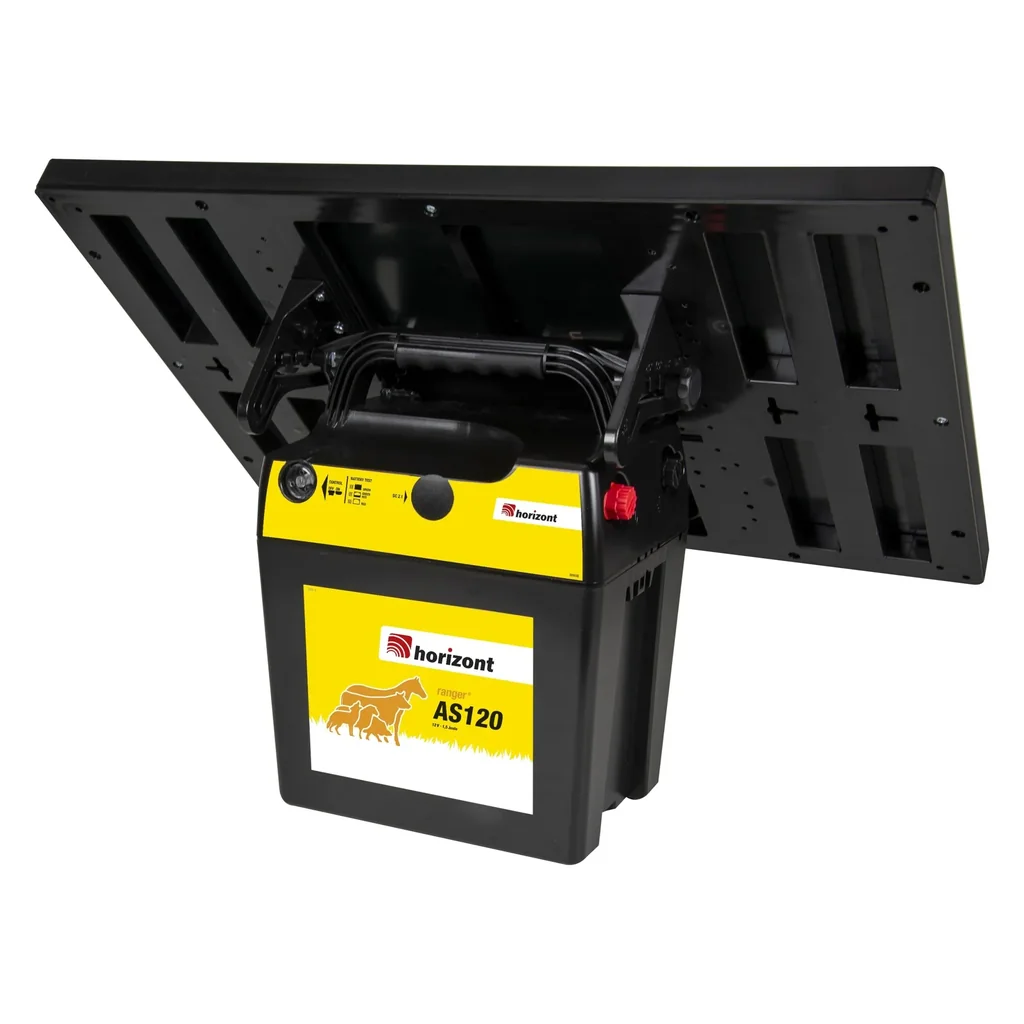

Solar electric fence energizer ranger AS120

• Powerful solar fence energizer system - ideal for fence lengths of up to 12 km
• 12,700 V maximum voltage, 1.5 joules input / 1.2 joules output
• Environmentally friendly use of solar energy + compact unit of electric fence energizer and 20 W solar module
• Integrated eco-saving circuit automatically adjusts power consumption to the fence condition
• Dual device - 230 V / 12 V parallel operation
• Mounting for solar module with 4 different angles and a transport position
• Ideal for calm grazing animals and normal operating conditions
• Solar charging control built into the device, weatherproof - easy charging of various battery types
• Particularly sturdy housing, impact-resistant plastic with UV stabilizer
• Integrated earth stake
• Secure installation of the device even in windy and Uneven ground thanks to U-shaped ground stake
• 3-stage battery capacity indicator
• High efficiency of the installed solar modules
• Plastic frame made of polycarbonate
• The modules are mounted on a plastic carrier plate and covered with a transparent plastic layer

The horizont AS devices are solar devices and offer the advantage of being delivered complete and therefore ready for immediate use. You can choose between four different angles of installation to optimally utilize solar energy. A transport position for the solar panel is also possible.

The horizont AS devices are delivered with a U-shaped ground stake. Under favorable conditions, this can already secure the grounding on small pastures. For larger pastures or dry soil conditions, additional galvanized T-shaped ground stakes at least 1 m long should be used. The U-shaped ground stake also ensures stability for these devices. The U-shaped ground stake allows the devices to be securely installed even in windy conditions and on uneven ground.

The installed solar modules are characterized by their high efficiency. This is evident in their small surface area with nominal outputs of 20 and 30 watts. The devices include a built-in solar charge controller.

The modules are mounted on a plastic carrier plate and covered with a transparent plastic layer. For stability, the modules are enclosed in a polycarbonate plastic frame.

In the modules of the horizont AS devices, the cells are arranged closely together on the module to generate a lot of power in a relatively small area.

The battery indicator shows the capacity – the charge level – of the battery in three stages. If the capacity drops too much, for example, off-season – in the barn – the battery can be easily recharged using the included plug-in power supply. The plug-in power supply can be easily connected to the DC socket on the housing.

The new electric fence energizer series is characterized by its ECO Power mode. The power-saving circuit automatically adjusts power consumption to the condition of the fence, resulting in less energy consumption, less pollution, and lower costs. Furthermore, the electric fence energizer automatically switches to solar operation, which eliminates the need for other power sources. The solar charging controller is weatherproof and guarantees trouble-free charging of various battery types. Furthermore, the electric fence energizer is controlled by a microprocessor.

The modules are mounted on a plastic carrier plate and coated with a transparent plastic layer. For stability, the modules are enclosed in a polycarbonate plastic frame. This makes the entire unit more flexible, yet still highly stable.

Scope of delivery:

• Electric fence energizer,
• 20-watt solar module,
• 12 V/34 Ah battery
• Ground stake (double spike)
• Fence and ground connection cable
• Power adapter
