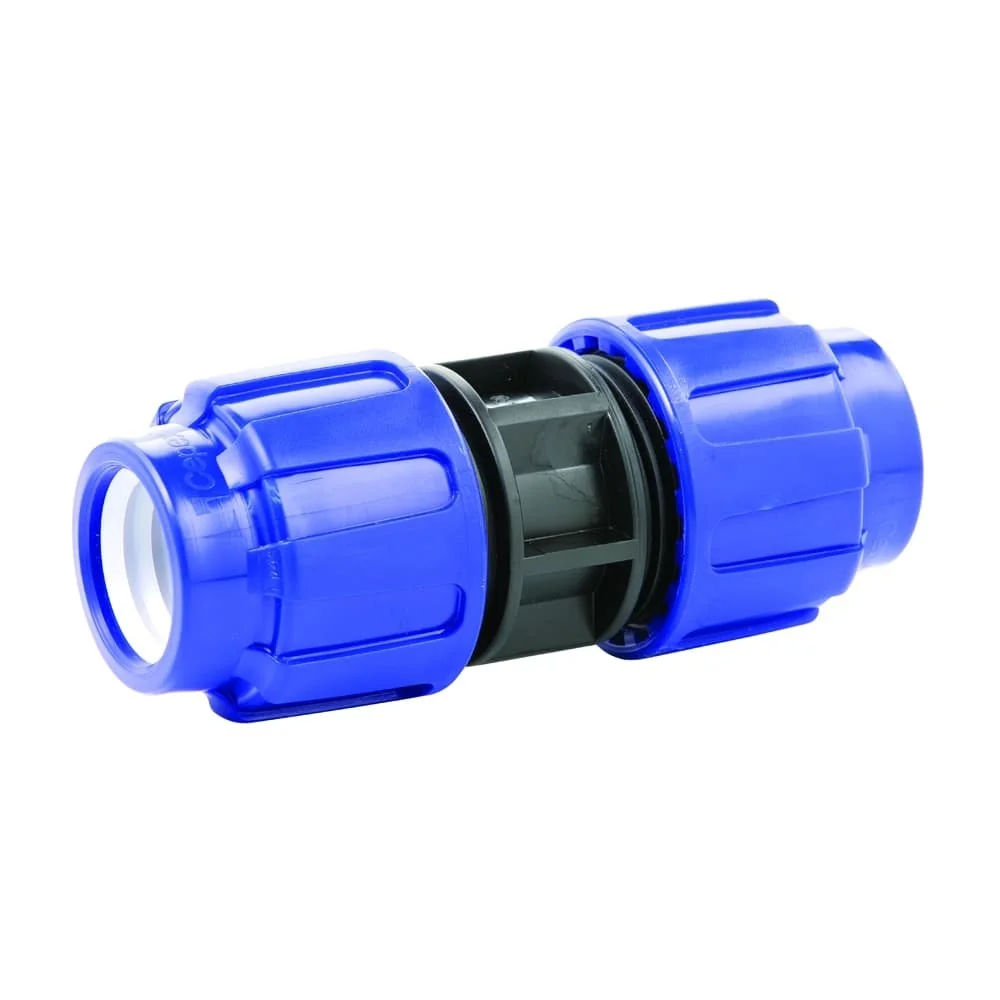

Złączka rurowa PP PE sprzęgło tuleja 40 x 40
Informacje o tym produkcie:
- Wytrzymały materiał PP – do długotrwałego użytku
- Wymiary: 40 x 40 mm – idealne do systemów rur ciśnieniowych
- Klasa ciśnienia PN 16 (240 psi) – wysoka wydajność
- Długość: 92 mm – elastyczna do wielu zastosowań
- Złączka rury PE mufa – bezpieczna dla wody pitnej
| Numer artykułu | BONI-01552 |
| Marka | Cepex |
Gerhard Schießl
Henry Gorynia
Reinhard Piel
Susanne Thalhei
Frank Giebel
Claudia Feil
Jenny Lohse
Anna Galeotafio
Achim Enders
Peter Neukirch
Melanie Ebinger
Kevin Neu
Nie ma jeszcze pytań
Zadaj pytanie, aby dowiedzieć się więcej o produkcie
5.0
Recenzje (12)
Gerhard Schießl
PP PE Pipe Fitting Coupling Socket 40 x 40
Looking for compression fittings and couplings for your pressure pipe systems?
We offer you the right PE pipe fitting for private or industrial use.
Suitable for use in the drinking water sector.

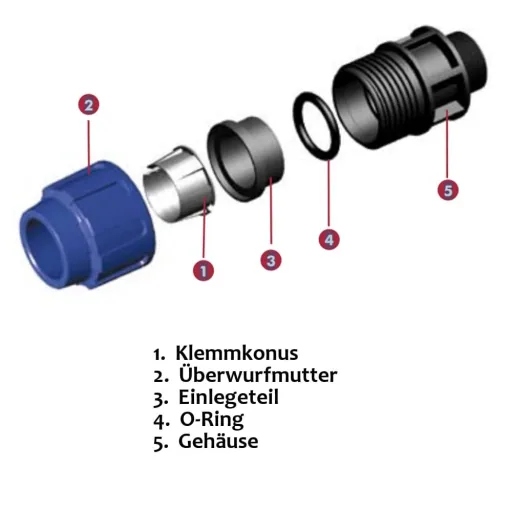

Technical Data (see image)
D: 40 x 40
DN: 32
PN: 16 (240 psi)
L: 92mm
Z: 5mm
E: 80mm
Our All-Purpose Solution
Our PE pipe fitting is an all-purpose solution. It is made of polypropylene and is therefore very impact and crack resistant.
At the same time, it is very durable and shows little or no signs of wear or deterioration even after prolonged use.
It provides ideal insulation and is resistant to acids, alkalis, salts and other organic solutions.
Our PE pipe fitting (also called fitting) is particularly lightweight and can be installed in no time.
You benefit from the high quality of the product we offer, as our PE pipe fitting (compression connector) is tested and certified by internationally recognized testing institutes.
You can order the PE fittings from us in several variants and use them in a wide variety of applications. The most important points at a glance:
- PE pipe fitting in various variants
- blue/black
- suitable for use in the drinking water sector
- very easy installation
- secure connections, high sealing integrity
- highly durable, acid resistant and very impact resistant
- Temperature range from 0°C to 80°C (short-term up to 110°C)
- Maximum permissible pressure at 20°C = PN16 (240psi)
We offer various models
- Ball valve
- End cap
- Compression sleeve
- Coupling with external thread
- Coupling with internal thread
- Coupling with socket
- Coupling with reducer
- Assembly wrench
- T-piece with 3 fittings
- T-piece with external thread
- T-piece with internal thread
- T-piece with expansion
- T-piece with reducer
- Adjustable wall bracket with internal thread
- Elbow with 2 fittings
- Elbow with external thread
- Elbow with internal thread
Our fitting complies with standards EN 712/713/715 and ISO 3501/3458/3459.
It is optimally suitable for coupling to PE pipes in accordance with standards ISO 11922; DIN 8072/8074 and UNE 53131.
